GPS Tracker

Wireless Car Gps Tracker Has A Strong Magnetic Adsorption Design On The Back, Which Is Easy To Install. It Is Mostly Used In Fleet Management, Logistics Transportation, Car Sharing, Financial Car.

product feature

  1. Small size
  2. WIFI+ Beidou+ GPS+ LBS positioning
  3. Magnetic absorption and adsorption, convenient installation
  4. Anti- counterfeiting base station detection, reduce the risk of demolition
  5. Positioning once a day, work for 3 years
  6. Light sense dismantling alarm
  7. Support the platform for low power alarm
  8. IP67 waterproof
  9. Built-in large capacity lithium manganese cell,
  10. has ultra-low self-discharge rate and extremely wide temperature adaptability
  11. JT808 protocol

Product Parameter

Specification Parameter

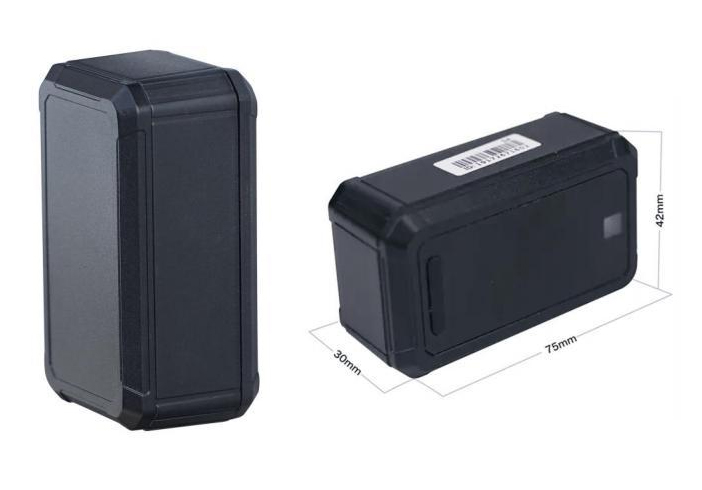

Size 71*41*32mm
Weight 121g
Working voltage 3V
Frequency Bands B1 /B2/B3/B4/B5/B7/B8/B28/B66 GSM/GPRS 850/900/1800/1900 MHz
Battery capacity 4200mAh
Communication antenna 4G FPC antenna
Positioning WIFI+GPS+LBS
Position Error WIFI<5m, GPS< 10m
Communication mode TCP
Positioning antenna 18mm * 18mm * 2mm GPS ceramic antenna
Ceramic chip antenna Built-in GPS/BD dual-mode, 18*18*2
Communication network GPRS
GPRS Class12 TCP/ IPbuild
Operating temperature range -25°C to +75°C
Storage temperature -40°C to +80°C
Anti-disassembly method Light-sensing anti-disassembly
